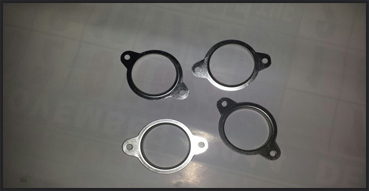

These is the Bigwall 2” Capseals which is having Big wall images (Collar) from other 2’ Capseals
| Description | Specification | Test Method |
|---|---|---|
| Size | 50 mm [2 inch] | Vernier |
| Raw Material | Tin Free Sheets | |
| External Appearance | White colour background with required monogram as per your Specification |
Visual |
| Internal Coated | Golden | Visual |
| Length of Collar | 13 mm | |
| Thickness of Sheet / Guage | 0.27 - 0.30 + or - 0.01 [ For each type ] Coated with anti corrosive coating. |
Screw Gauge |
| Test Conducted | Capseals are tested at a persure of 2 Kg / cm2 for its leak proofness |
with ears / without ears(Kuppi)
| Description | Specification | Test Method |
|---|---|---|
| Size | 3”:- 78mm,82mm,83mm & 85mm | Vernier |
| Raw Material | Tin Free Sheets | |
| External Appearance | White colour background with required monogram as per your Specification |
|
| Internal Coated | Golden | Visual |
| Thickness of Sheet / Guage | 0.27 - 0.30 + or - 0.01 [ For each type] Coated with anti corrosive coating. |
Screw Gauge |
| Description | Specification | Test Method |
|---|---|---|
| Size | 4 inch | Vernier |
| Raw Material | Tin Free or Tin plate Sheets | |
| External Appearance | White colour background with required monogram as per your Specification |
|
| Internal Coated | Golden or Silver | Visual |
| Description | Specification | Test Method |
|---|---|---|
| Size | 4 inch | Vernier |
| Raw Material | Tin Free or Tin plate Sheets | |
| External Appearance | White or golden colour background | |
| Internal Coated | Golden or Silver | Visual |
These 7” capseals are suitable for Bitumen Drums.
| Description | Specification | Test Method |
|---|---|---|
| Size | 7 inch | Vernier |
| Raw Material | Tin Free or Tin plate Sheets | |
| External Appearance | White or golden colour background with required monogram as per your Specification |
|
| Internal Coated | Golden or Silver | Visual |
